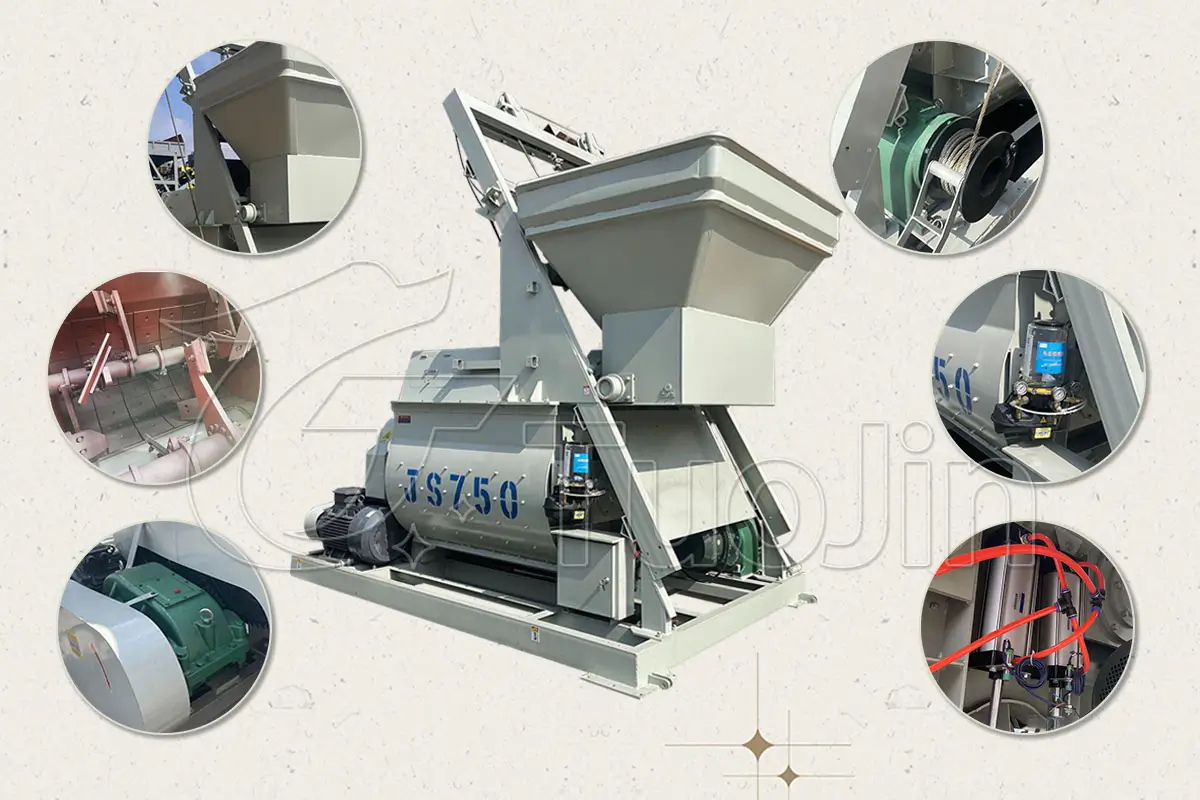

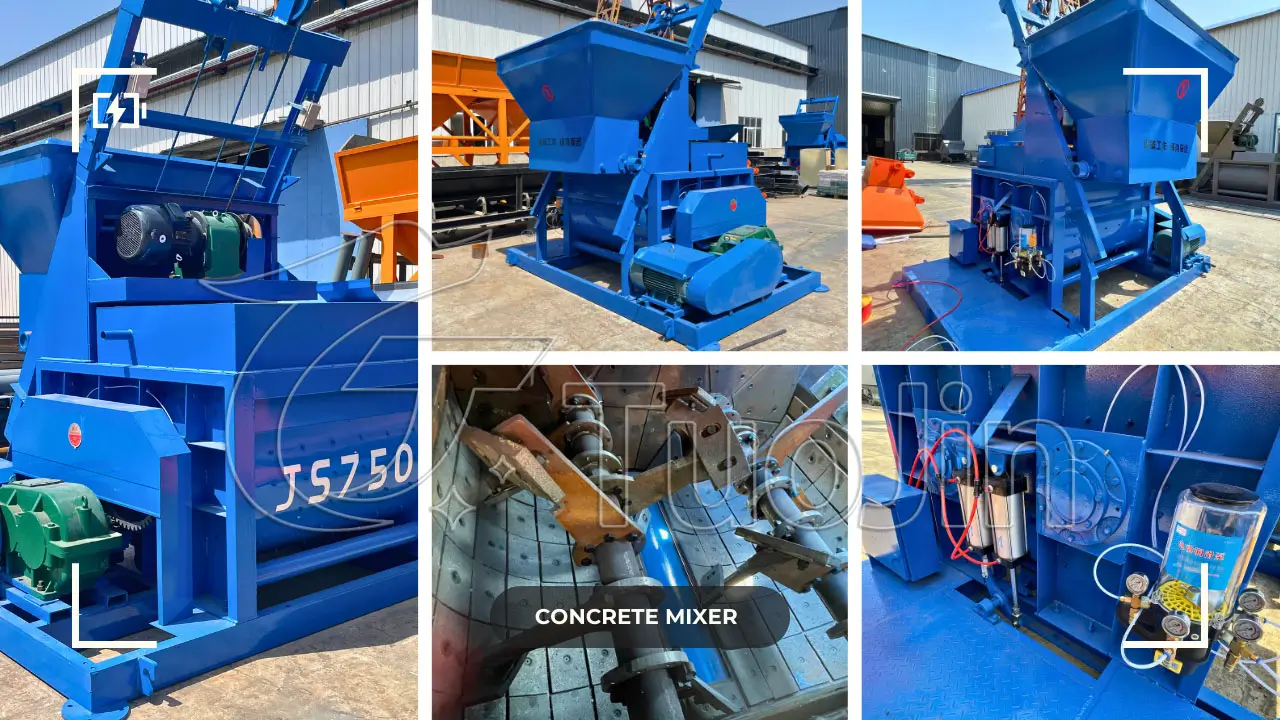

Product Description
The JS750 Concrete Mixer is a robust and efficient twin-shaft forced mixer designed for high-performance concrete production. With a discharge capacity of 0.75 cubic meters per batch, it is also known as the 0.75 forced mixer. This machine is capable of producing 35 m³/h, making it an ideal choice for HZS35 concrete batching plants as the main mixer. The JS750 can operate independently or be integrated with a PLD concrete batching machine to form a simple concrete mixing station.
The JS750 is widely used in large and medium-sized precast concrete plants, as well as in industrial and civil construction projects such as roads, bridges, water conservancy, and port construction. It is suitable for mixing various types of concrete, including dry-hard, plastic, fluid, lightweight aggregate concrete, and different types of mortar.
Working Principle
The JS750 Concrete Mixer operates on a twin-shaft forced mixing principle, ensuring thorough and uniform mixing of materials. The twin-shaft design provides powerful mixing action, ensuring that even the toughest materials are blended efficiently.
The mixer's vortex mixing mechanism prevents material clumping and ensures consistent mixing quality. The discharge mechanism is available in hydraulic, pneumatic, or manual control options, allowing for flexible operation based on user preferences.
JS750 Concrete Mixer Performance
The JS750 Concrete Mixer is engineered for high performance, offering reliable operation, low noise levels, and energy efficiency. Its compact structure, smooth operation, and user-friendly design make it a preferred choice for construction projects worldwide.
Advantages & Features
High Mixing Efficiency: Ensures uniform mixing of all materials, including dry-hard and lightweight concrete.
Low Energy Consumption: Designed to minimize power usage while maintaining high output.
Durable Construction: Built with high-alloy wear-resistant materials for long service life.
Versatile Applications: Suitable for a wide range of construction projects, from small-scale to large industrial applications.
Multiple Discharge Options: Hydraulic, pneumatic, or manual discharge systems cater to different operational needs.
Automation Compatibility: Can be integrated with automated control systems for enhanced productivity.
Technical Specifications
| Model | HZS25 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |
|---|---|---|---|---|---|---|---|
| Discharging capacity | 500L | 750L | 1000L | 1500L | 2000L | 3000L | |
| Charging capacity | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | |
| Productivity | 25m³/h | 35m³/h | 50-60m³/h | 75-90m³/h | 120m³/h | 150m³/h | |
| Max.size of aggregate(aggregate/pebble) | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 100-120mm | |
| Blade | Rotate speed | 35r/min | 31r/min | 25.5r/min | 25.5r/min | 23r/min | 21r/min |
| Quantity(pcs) | 2x7 | 2x7 | 2x7 | 2x8 | 2x9 | 2x10 | |
| Power of main motor | 18.5kw | 30kw | 37kw | 2x30kw | 2x37kw | 2x55kw | |
| Power of hoisting motor | 5.5kw | 7.5kw | 15kw | 18.5kw | 22kw | / | |
| Power of water pump motor | 1.1kw | 1.5kw | 3kw | 3kw | 4kw | / | |
| Hopper hoisting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | / | |
| Discharging height | 1.5m-3.8m | 15.m-3.8m | 4m | 4m | 4m | / | |
| Overall Dimension | Transportation | 3050x2300x2680mm | 3650x2600x2890mm | 4640x2250x2250mm | 5058x2440x2700mm | 5860x2735x2735mm | / |
| Working | 4461x3050x5225mm | 4951x3650x6225mm | 8765x3436x9540mm | 9645x3436x9700mm | 10720x3870 x10726mm | / | |
| Total weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | / | |

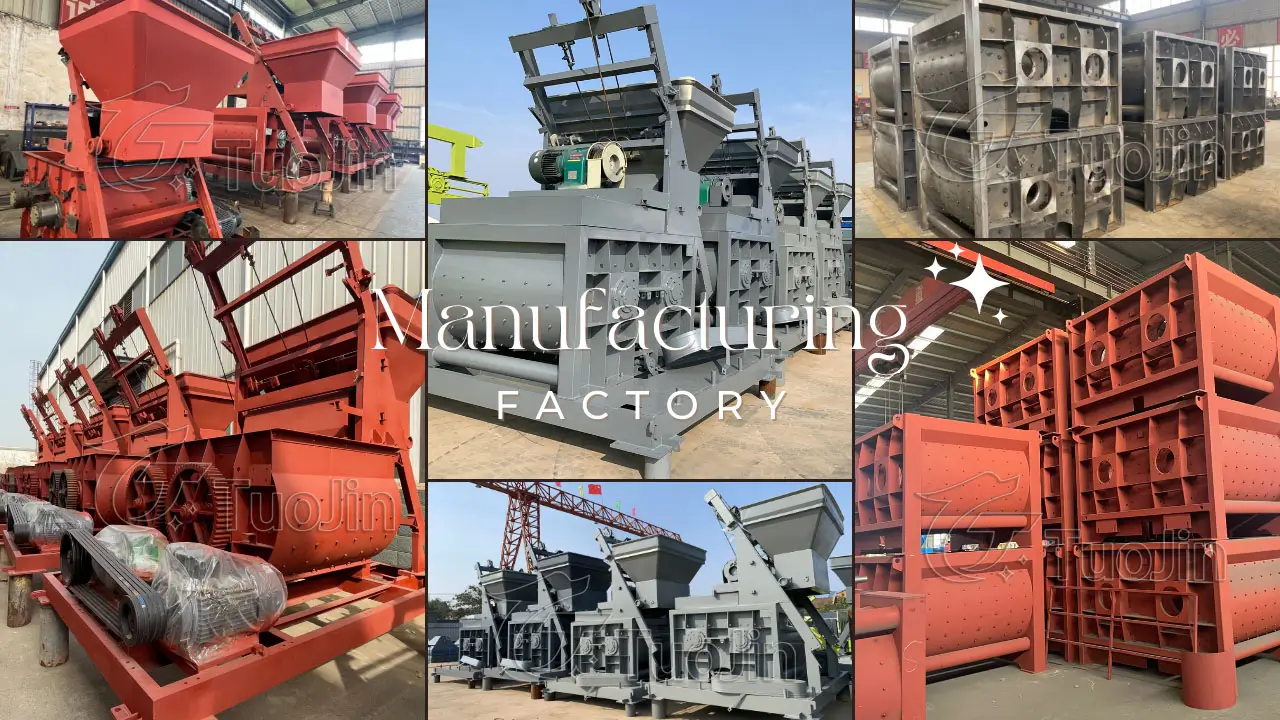

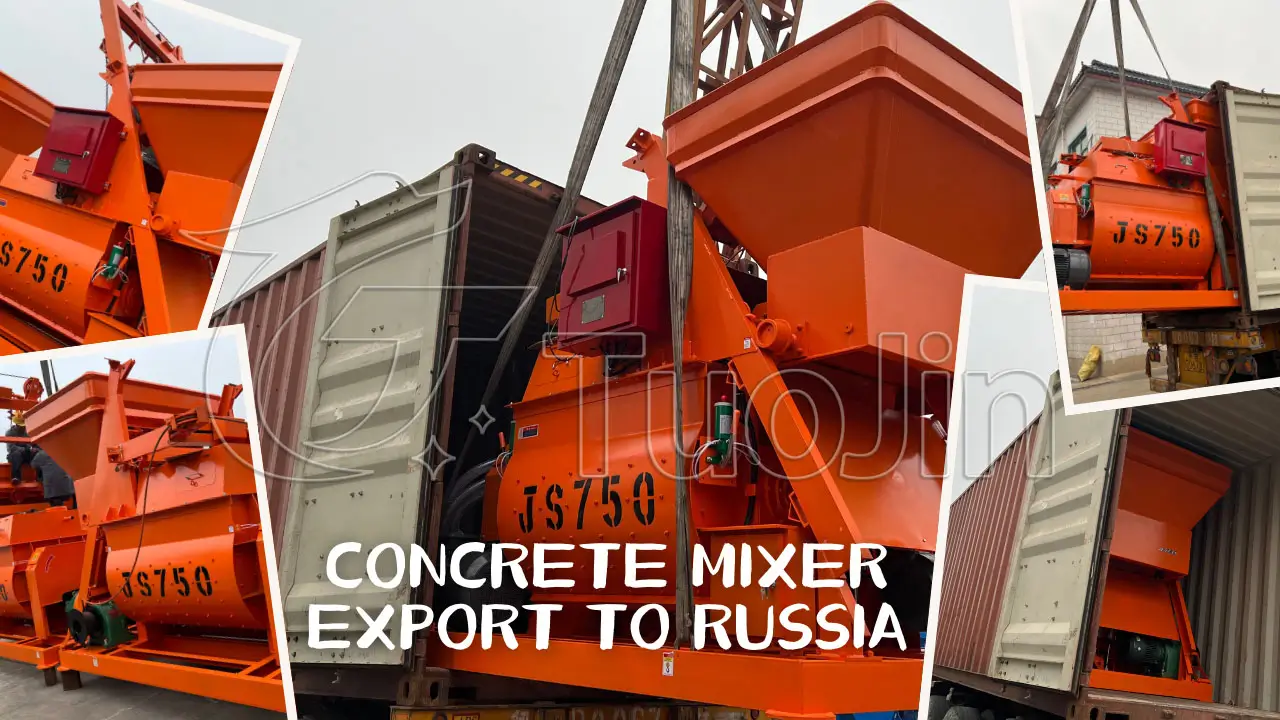

Factory delivery of JS750 concrete mixer
Service
At TuoJin Machinery, we are committed to providing comprehensive support to our global clients. Our services include:
Pre-Sales Consultation: Expert advice to help you choose the right configuration for your needs.
Installation and Training: On-site installation and operator training to ensure optimal performance.
After-Sales Support: Dedicated technical support and maintenance services to keep your equipment running smoothly.
Spare Parts Supply: Genuine spare parts are readily available to minimize downtime.
FAQ
1. What types of concrete can the JS750 mix?
The JS750 can mix dry-hard, plastic, fluid, lightweight aggregate concrete, and various types of mortar.
2. Can the JS750 operate independently?
Yes, it can function as a standalone unit or be integrated into a batching plant.
3. Is the JS750 suitable for large-scale projects?
Yes, it is widely used in large and medium-sized construction projects, including roads, bridges, and ports.
4. What maintenance does the JS750 require?
Regular lubrication, inspection of wear parts, and cleaning are recommended to ensure optimal performance.
5. Can the JS750 be customized?

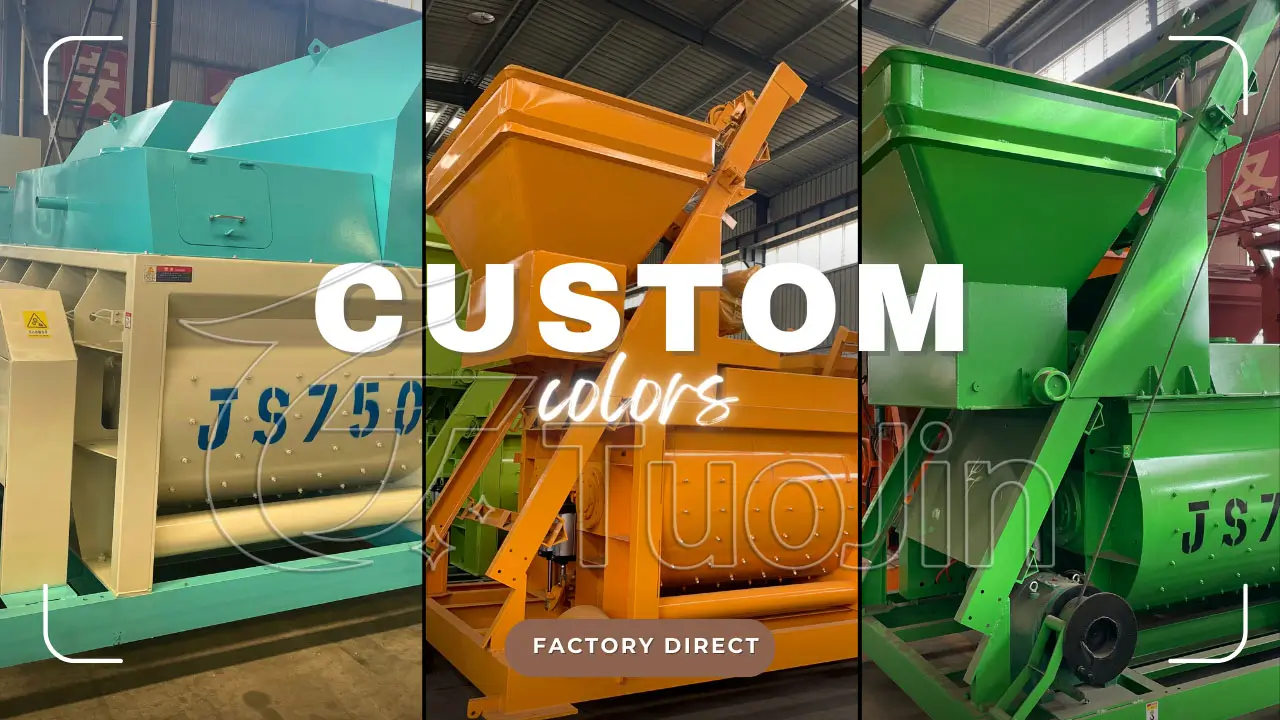

Yes, we offer customization options to meet specific project requirements, including voltage, color, and additional features.
For more information about the JS750 Concrete Mixer or to request a quote, contact TuoJin Machinery today. We are your trusted partner in high-quality concrete mixing solutions.
