Product Description

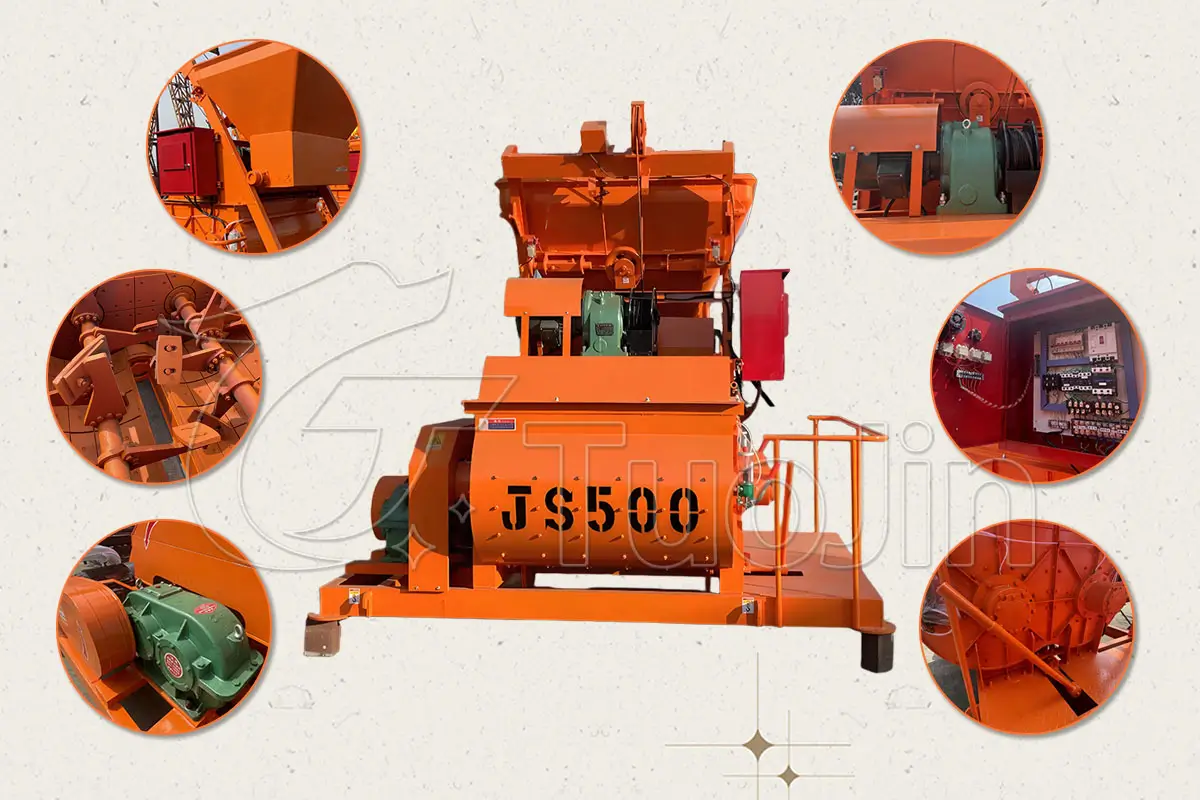

JS500 Concrete Mixer is a robust and efficient machine designed for mixing concrete in various construction projects. Manufactured by TuoJin Machinery, a leading JS500 concrete mixer factory in China, this mixer is ideal for producing high-quality concrete for both small and medium-scale construction sites. It is widely recognized for its durability, reliability, and excellent performance, making it a preferred choice for international clients involved in the wholesale and distribution of construction machinery.
JS500 forced concrete mixer, with a discharge of 0.5 cubic meters each time, is also called 0.5 cubic concrete mixer, with an hourly productivity of 25m³. It is mostly used as the main machine of HZS25 mixing station, and can also have the dual advantages of single machine operation and PLD series batching machine to form a simple concrete mixing station.
Working Principle

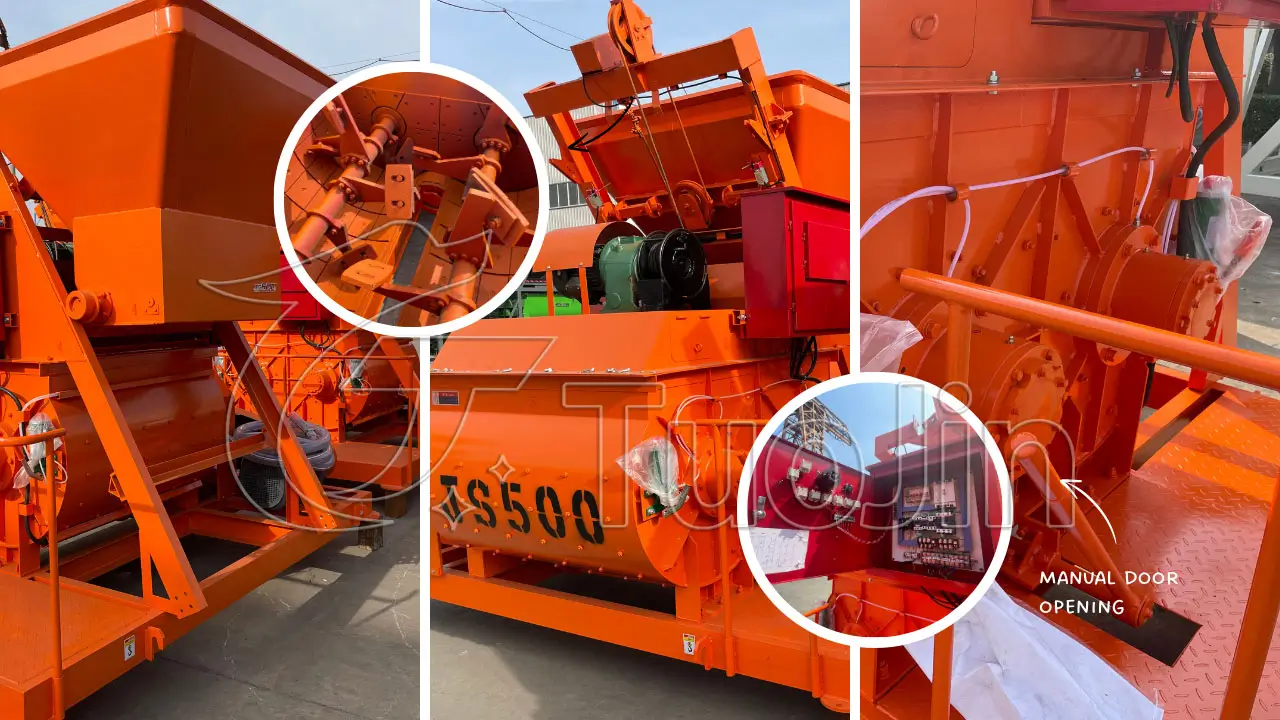

The JS500 concrete mixer operates on a twin-shaft mixing mechanism, ensuring thorough and uniform mixing of concrete ingredients. The mixer features a double horizontal shaft design, which allows for efficient blending of cement, water, aggregates, and other additives. The rotating blades inside the mixing drum ensure consistent mixing, eliminating the risk of segregation or uneven distribution of materials. This design ensures high productivity and superior concrete quality, meeting the demands of various construction applications.
JS500 Mixer Performance
The JS500 twin-shaft forced concrete mixer is currently an advanced and ideal model both domestically and internationally. It boasts high automation, excellent mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharge speed, long service life of liners and blades, and easy maintenance. This machine features automatic discharge, convenient water addition control, strong power, low electricity consumption, and robust performance. Additionally, it is equipped with a built-in vortex mixer to prevent material clumping and blockages in the hopper.
Advantages & Features
Durable Construction: Built with high-quality materials, the JS500 concrete mixer is designed to withstand harsh working conditions and provide long-lasting performance.
Efficient Mixing: The twin-shaft design ensures thorough and uniform mixing, resulting in high-quality concrete.
Easy Maintenance: The mixer is designed for easy access to key components, simplifying maintenance and reducing operational costs.
Versatility: Suitable for a wide range of concrete mixes, including dry, wet, and semi-dry concrete.
Compact Design: The compact structure makes it easy to transport and install, even in confined workspaces.
Safety Features: Equipped with safety guards and emergency stop functions to ensure safe operation.
Technical Specifications
| Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |
|---|---|---|---|---|---|---|---|
| Discharging capacity | 500L | 750L | 1000L | 1500L | 2000L | 3000L | |
| Charging capacity | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | |
| Productivity | ≥25m³/h | ≥37.5m³/h | ≥50m³/h | ≥75m³/h | ≥100m³/h | ≥150m³/h | |
| Max.size of aggregate(aggregate/pebble) | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 100-120mm | |
| Blade | Rotate speed | 35r/min | 31r/min | 25.5r/min | 25.5r/min | 23r/min | 21r/min |
| Quantity(pcs) | 2x7 | 2x7 | 2x7 | 2x8 | 2x9 | 2x10 | |
| Power of main motor | 18.5kw | 30kw | 37kw | 2x30kw | 2x37kw | 2x55kw | |
| Power of hoisting motor | 5.5kw | 7.5kw | 15kw | 18.5kw | 22kw | / | |
| Power of water pump motor | 1.1kw | 1.5kw | 3kw | 3kw | 4kw | / | |
| Hopper hoisting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | / | |
| Discharging height | 1.5m-3.8m | 15.m-3.8m | 4m | 4m | 4m | / | |
| Overall Dimension | Transportation | 3050x2300x2680mm | 3650x2600x2890mm | 4640x2250x2250mm | 5058x2440x2700mm | 5860x2735x2735mm | / |
| Working | 4461x3050x5225mm | 4951x3650x6225mm | 8765x3436x9540mm | 9645x3436x9700mm | 10720x3870 x10726mm | / | |
| Total weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | / | |
Factory delivery of JS500 concrete mixer
Service
At TuoJin Machinery, we are committed to providing exceptional service to our international clients. Our services include:
Pre-Sales Consultation: Expert advice to help you choose the right equipment for your needs.
Customization: Tailored solutions to meet specific project requirements.
Installation and Training: On-site installation and operator training to ensure optimal performance.
After-Sales Support: Comprehensive warranty and technical support to keep your equipment running smoothly.
Spare Parts Supply: Genuine spare parts readily available to minimize downtime.
FAQ
1. What is the production capacity of the JS500 concrete mixer?
The JS500 concrete mixer can produce up to 25 cubic meters of concrete per hour, depending on the mix design and operational conditions.
2. Is the JS500 concrete mixer suitable for dry concrete mixes?
Yes, the JS500 is versatile and can handle dry, wet, and semi-dry concrete mixes with ease.
3. Can I get customized solutions for the JS500 concrete mixer?

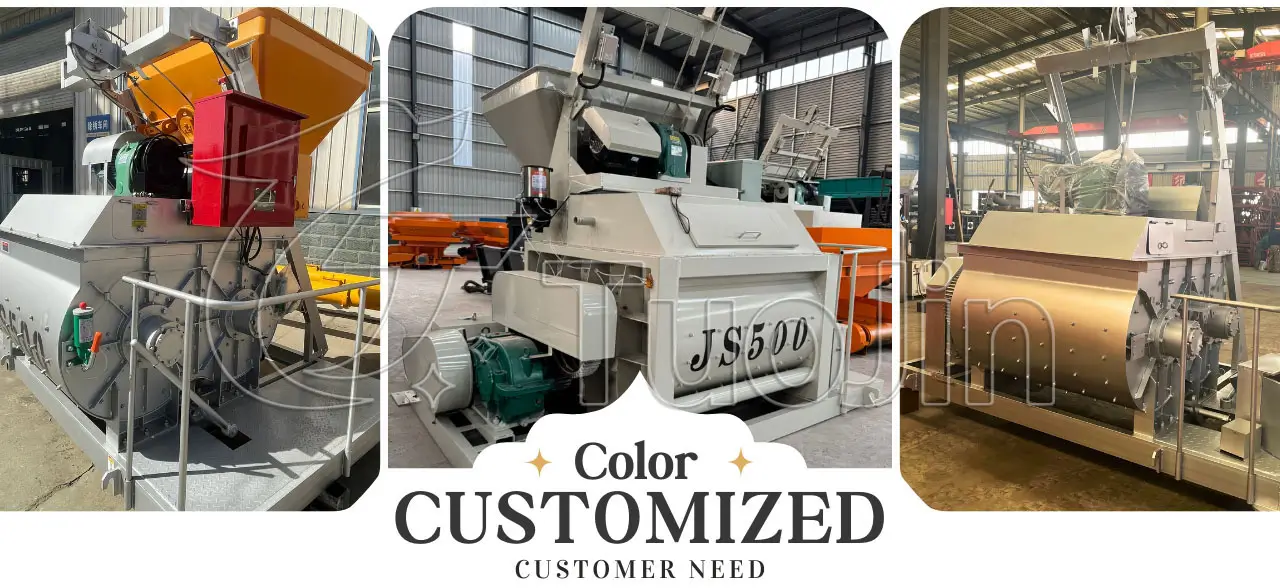

A: Yes, we can customize the JS500 Concrete Mixer to meet your specific requirements, including voltage, color, and additional features.
4. What kind of after-sales support do you provide?
We provide comprehensive after-sales support, including warranty coverage, technical assistance, and spare parts supply.
5. How do I maintain the JS500 concrete mixer?
Regular maintenance includes checking the lubrication system, inspecting the mixing blades, and ensuring the motor and gearbox are in good condition. Our team provides detailed maintenance guidelines and support.
For more information about the JS500 concrete mixer or to request a quote, contact TuoJin Machinery today. As a trusted JS500 concrete mixer supplier, we are dedicated to delivering high-quality products and services to our global clients.
