Product Description

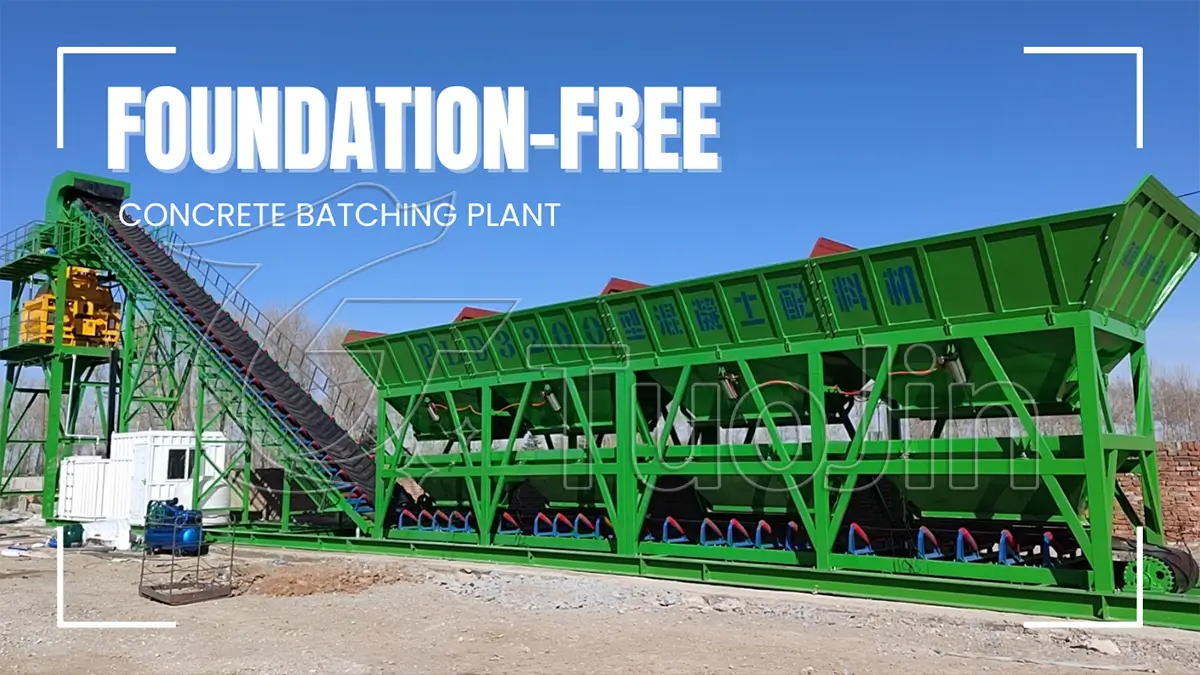

MHZS120 foundation-free concrete batching plant is a highly integrated, modularly designed medium-to-large mobile mixing equipment with a production capacity of up to 120 cubic meters per hour. The plant requires no complex foundation construction and is supported and fixed by a steel structure chassis. It is easy to transport and install quickly, making it particularly suitable for projects with tight schedules, frequent relocations, or temporary construction sites.
How does a foundation-free concrete batching plant work?
MHZS120 uses a centralized control system to weigh sand, gravel, cement, water, and additives according to preset proportions, then feeds the materials into the mixing host for high-speed, compulsory mixing. The final output is uniformly mixed, high-quality concrete.

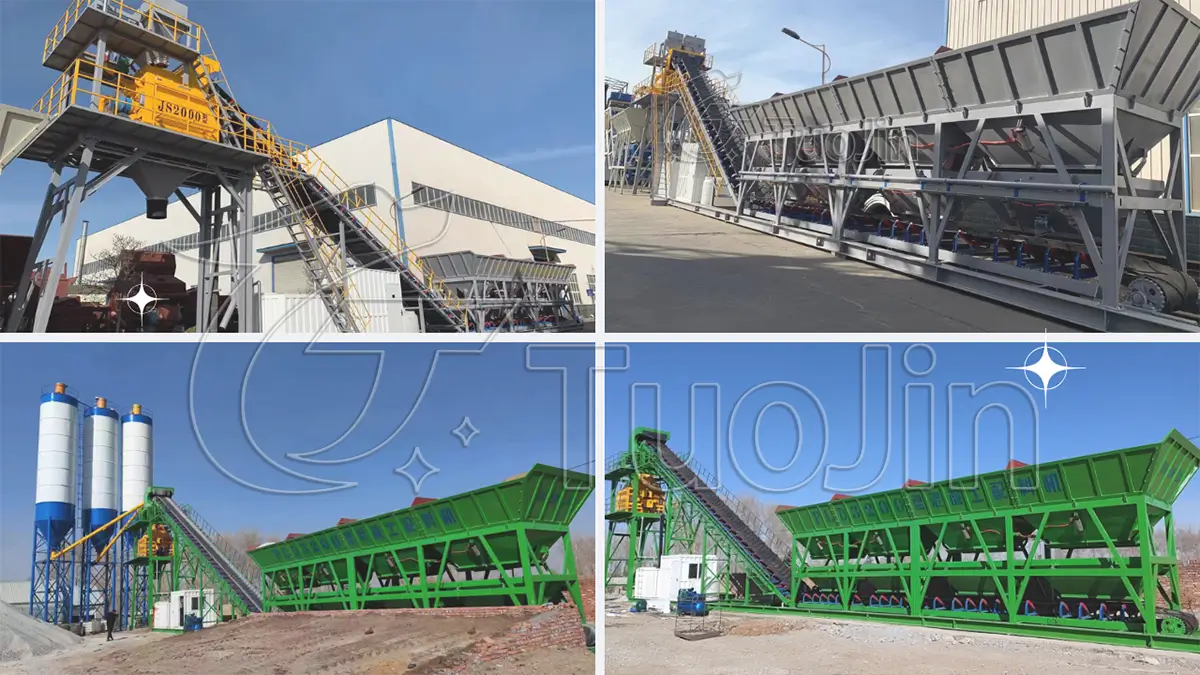

Parts of MHZS120 Foundation-Free Concrete Batching Plant
Mixing Host: JS2000 twin-shaft compulsory mixer
Aggregate Batching System: PLD3200 four-bin batching machine
Aggregate Conveying System: Belt conveyor or skip hoist
Cement/Fly Ash Storage and Conveying System: Cement silo with screw conveyor
Weighing System: Independent and precise weighing for water, powder, and additives
Control System: Fully automatic PLC + touch screen + industrial computer, with optional remote monitoring
Steel Structure Foundation Module: Modular support frame replacing traditional concrete foundation
Advantages & Features
Foundation-Free Design: Saves time and cost on foundation construction; adaptable to various terrains
High Capacity & Stability: Daily concrete output up to 2,000 m³, meeting demands of large-scale construction projects
Fast Installation & Dismantling: Installation and commissioning can be completed in 2–3 days, ideal for projects requiring frequent relocation
Excellent Environmental Performance: Enclosed structure with dust collection system ensures effective dust control
Intelligent Control: Easy to operate with high automation; supports remote monitoring and fault self-diagnosis
Modular Transportation: Equipment is divided into standard modules for convenient containerized transport
Technical Specifications
| Model | MHZS90 | MHZS120 | MHZS180 | |
|---|---|---|---|---|
| Theoretical productivity | 90m³/h | 120m³/h | 180m³/h | |
| Mixer capacity | 1.5m³ | 2m³ | 3m³ | |
| Quantity and volume of aggregate silo | PLD2400-4 | PLD3200-3/4 | PLD4800-4/6 | |
| Measuring form of aggregate silo | Separate metering | Separate metering | Separate metering | |
| Volume and capacity of powder silo | 100-150t(Horizontal/Vertical) | 100-150t(Horizontal/Vertical) | 150-200t(Horizontal/Vertical) | |
| Discharging height | 4000mm | 4000mm | 4200mm | |
| Total power | 125kw | 143kw | 186kw | |
| Dimensions(mm)(Transportation status) | 17500✖30000✖30000 | 17000✖30000✖30000 | 17000✖30000✖30000 | |
| Aggregate metering accuracy | ±2% | ±2% | ±2% | |
| Cement metering accuracy | ±1% | ±1% | ±1% | |
| Water metering accuracy | ±1% | ±1% | ±1% | |
| Additive metering accuracy | ±1% | ±1% | ±1% | |
Applications
Highway, bridge, and tunnel construction for transportation infrastructure
Urban redevelopment projects, subways, and airport municipal engineering
Water conservancy and power station projects
Temporary concrete supply stations and commercial concrete batching sites
Construction sites with tight schedules and frequent relocation needs
Installation and Maintenance
1. Installation Procedure (Brief Overview)
Level and compact the ground
Lift and assemble the structural modules
Connect power supply and control system
Commission the equipment and calibration systems
Perform trial runs before official production
2. Maintenance Guidelines
Regularly inspect key components such as the mixer, conveyor belt, and screw conveyor for wear
Clean the mixing system after each shift to prevent concrete residue hardening
Calibrate the weighing system periodically to ensure mix accuracy
Back up data and maintain dust protection for the control system
Difference Between MHZS120 Foundation-Free Concrete Batching Plant and HZS120 Concrete Batching Plant
Services
Factory Testing: All equipment undergoes strict debugging and testing, with modular delivery.
Supporting Documentation: Free provision of foundation layout drawings, electrical diagrams, manuals, etc.
Technical Guidance: Installation, commissioning, and operation training provided.
Warranty Period: 12 months warranty for the main machine, excluding consumable parts.
Spare Parts Supply: Regular availability of original factory spare parts, with quick response to customer needs.
Remote Support: Online Q&A and remote control services to help customers quickly resolve issues.
Installation and Commissioning: Remote technical support available, or experienced engineers can be dispatched for on-site installation guidance as needed.
FAQ
1. Is MHZS120 suitable for cold regions?
Yes, it can be equipped with optional heating systems and thermal insulation measures, making it suitable for low-temperature environments down to -30°C.
2. What are the site requirements?
The site should be level and well-compacted, with a load-bearing capacity of at least 10 tons per square meter. If equipped with support legs, the plant can also adapt to sloped or soft ground.
3. What capacity options are available in China foundation-free batching plants?
Chinese manufacturers offer a wide range of capacity options, including 60m³/h, 90m³/h, 120m³/h (e.g., MHZS60, MHZS90, MHZS120), and even customized models depending on project requirements.
4. Can I get a customized China foundation-free batching plant?
Absolutely. Chinese suppliers offer customization of mixer types (e.g. JS1500/2000/3000), control systems (PLC/Manual), cement silos, color, layout, and mobility features (with/without wheels or hydraulic legs).
5. Are no-foundation concrete batching plants stable and durable?
Yes, they are engineered with high-strength steel structures and vibration-damping technology to ensure stability and longevity, even without a traditional foundation.
6. How to purchase China foundation-free concrete batching plant?
We provide a one-stop procurement service. You can leave a message on our website, contact us by phone, or send an inquiry via email. We will offer customized solutions and quotations based on your specific requirements.
