Product Description

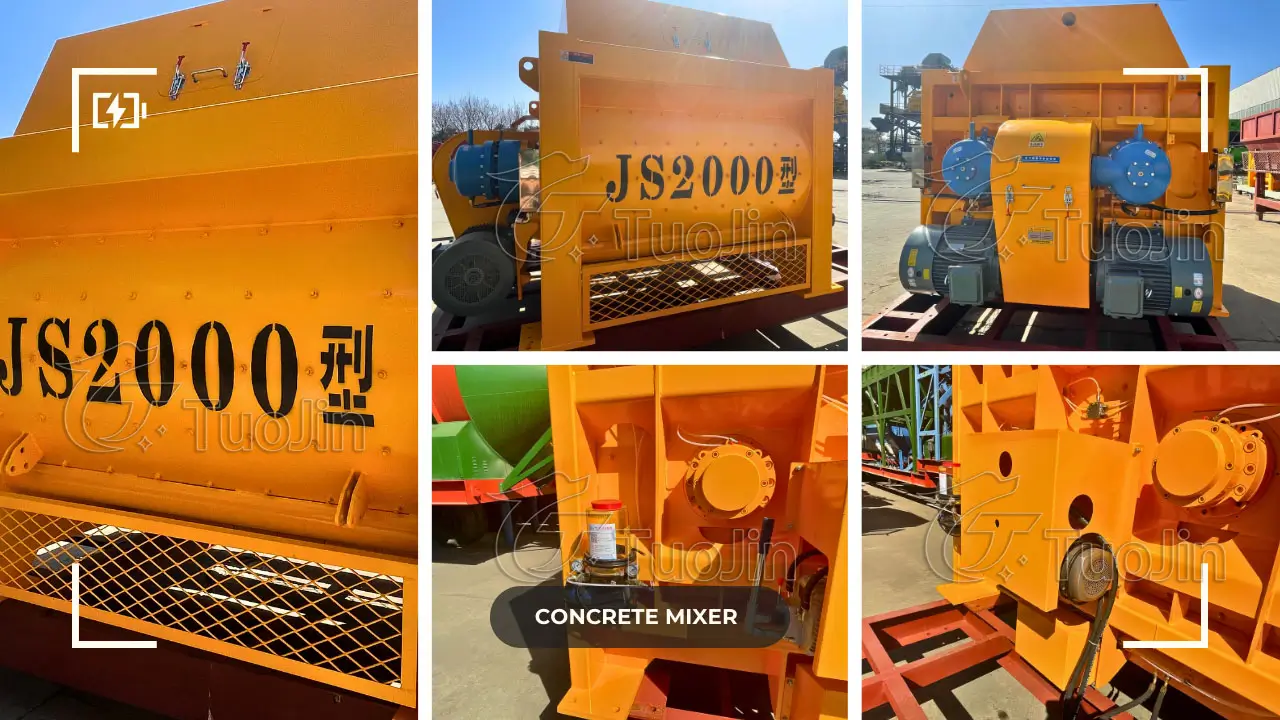

JS2000 concrete mixer is a twin-shaft compulsory mixing device with a discharge capacity of 2 cubic meters per batch, also known as a 2m³ concrete mixer or two-cubic-meter mixer. It is commonly used as the main mixer in HZS120 concrete batching plants, but can also operate as a single machine.
This model is widely applied in medium to large precast concrete plants, as well as in industrial and civil construction projects such as highways, bridges, water conservancy, and ports. It is capable of mixing dry-hard concrete, plastic concrete, flowable concrete, and various types of mortar.
With a compact structure and stable performance, the JS2000 mixer is regarded as one of the essential pieces of equipment in modern concrete production.
Working Principle
The JS2000 concrete mixer consists of five main systems: mixing system, transmission system, feeding system, discharging system, and electrical control system.
During operation, the motor drives the two mixing shafts to rotate at high speed through the reducer. Cement, aggregates, water, and additives are fed into the mixing drum according to the preset ratios. Inside the drum, the mixing blades perform shearing, lifting, squeezing, and convective movements, ensuring thorough and uniform mixing of all materials.
After mixing is completed, the concrete is discharged smoothly through a hydraulically controlled discharge gate.
JS2000 Mixer Performance
The JS2000 concrete mixer offers a high degree of automation, excellent mixing quality, short mixing time, high efficiency, low energy consumption, low noise, and uniform blending. It features fast discharge, long service life of liners and blades, easy operation, and convenient maintenance.
With its high productivity and stable performance, the JS2000 mixer fully meets the large-scale concrete demand of major construction projects and commercial concrete batching plants.
Advantages & Features
Outstanding Mixing Quality: A uniquely designed mixing system combined with precise mixing parameters ensures a high degree of uniformity in a short time. The produced concrete exhibits excellent workability and flowability, with strength meeting high construction standards.
High Mixing Efficiency: Equipped with an advanced transmission system and high-power motor, the mixing mechanism runs swiftly and stably. The short mixing cycle significantly improves production efficiency and shortens overall project timelines.
Strong Reliability: Key components are made from high-quality steel and processed using advanced manufacturing techniques, providing high strength and excellent wear resistance to ensure long-term, heavy-duty operation and continuous production.
Accurate Weighing System: The mixer is equipped with a high-precision weighing system that accurately controls the input of all materials. This guarantees strict adherence to mix designs and greatly enhances concrete consistency and quality.
Energy-Saving & Environmentally Friendly: Utilizes cutting-edge energy-saving technology and eco-friendly design principles to reduce energy consumption, minimize noise and dust emissions, and comply with national environmental standards.
User-Friendly Operation: The electrical control system is ergonomically designed with a simple and intuitive interface. Operators can quickly become proficient with minimal training, lowering labor costs and training complexity.
Easy Maintenance: The structural design facilitates daily inspection and maintenance. Components are easy to access, disassemble, and install, which helps reduce downtime and maintenance costs while improving operational efficiency.
Wide Material Compatibility: The mixing parameters and working modes can be flexibly adjusted to meet varying project requirements and material characteristics. It is suitable for producing a wide range of concrete types, including specialized concrete.
Technical Specifications
| Model | HZS25 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |
|---|---|---|---|---|---|---|---|
| Discharging capacity | 500L | 750L | 1000L | 1500L | 2000L | 3000L | |
| Charging capacity | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | |
| Productivity | 25m³/h | 35m³/h | 50-60m³/h | 75-90m³/h | 120m³/h | 150m³/h | |
| Max.size of aggregate(aggregate/pebble) | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 100-120mm | |
| Blade | Rotate speed | 35r/min | 31r/min | 25.5r/min | 25.5r/min | 23r/min | 21r/min |
| Quantity(pcs) | 2x7 | 2x7 | 2x7 | 2x8 | 2x9 | 2x10 | |
| Power of main motor | 18.5kw | 30kw | 37kw | 2x30kw | 2x37kw | 2x55kw | |
| Power of hoisting motor | 5.5kw | 7.5kw | 15kw | 18.5kw | 22kw | / | |
| Power of water pump motor | 1.1kw | 1.5kw | 3kw | 3kw | 4kw | / | |
| Hopper hoisting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | / | |
| Discharging height | 1.5m-3.8m | 15.m-3.8m | 4m | 4m | 4m | / | |
| Overall Dimension | Transportation | 3050x2300x2680mm | 3650x2600x2890mm | 4640x2250x2250mm | 5058x2440x2700mm | 5860x2735x2735mm | / |
| Working | 4461x3050x5225mm | 4951x3650x6225mm | 8765x3436x9540mm | 9645x3436x9700mm | 10720x3870 x10726mm | / | |
| Total weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | / | |

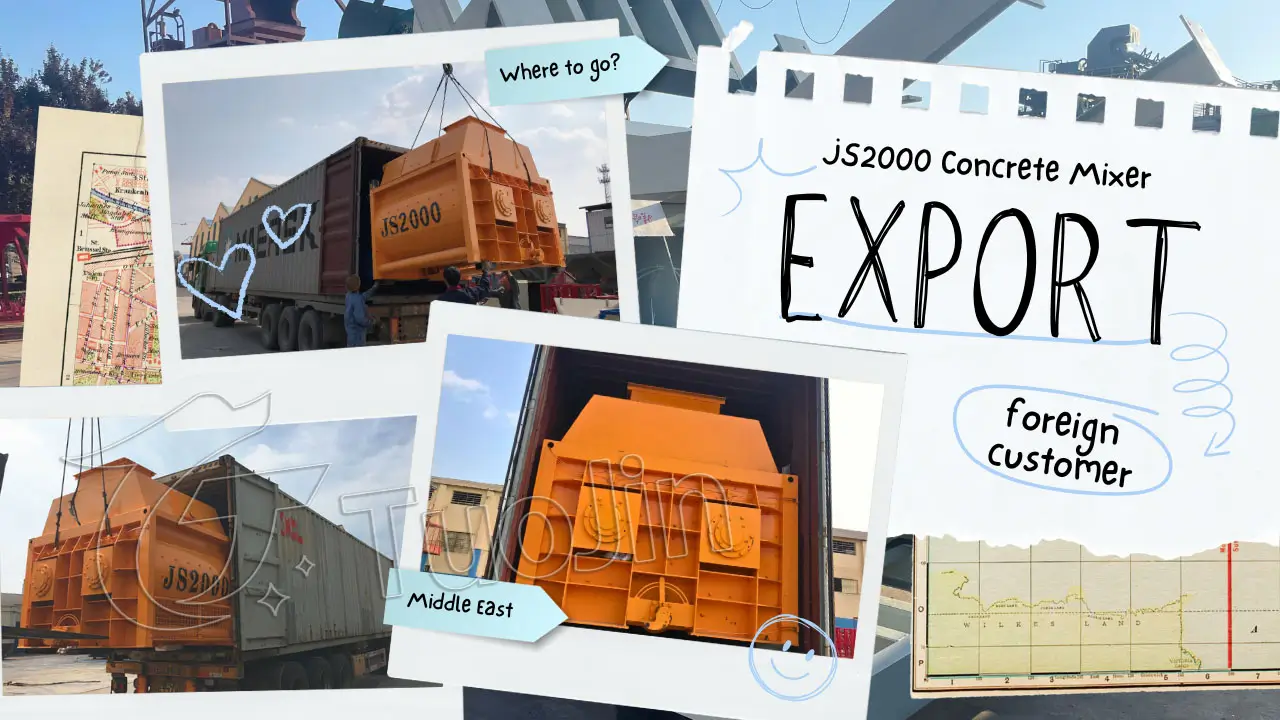

Factory delivery of JS2000 concrete mixer
Delivery Time: Available from stock or made to order;
Packaging Method: Export-standard packaging suitable for sea or land transportation;
Factory Testing: All equipment undergoes strict commissioning and testing to ensure reliable performance;
Supporting Documentation: Detailed equipment manuals, operation and maintenance guides, and spare parts lists are provided to customers;

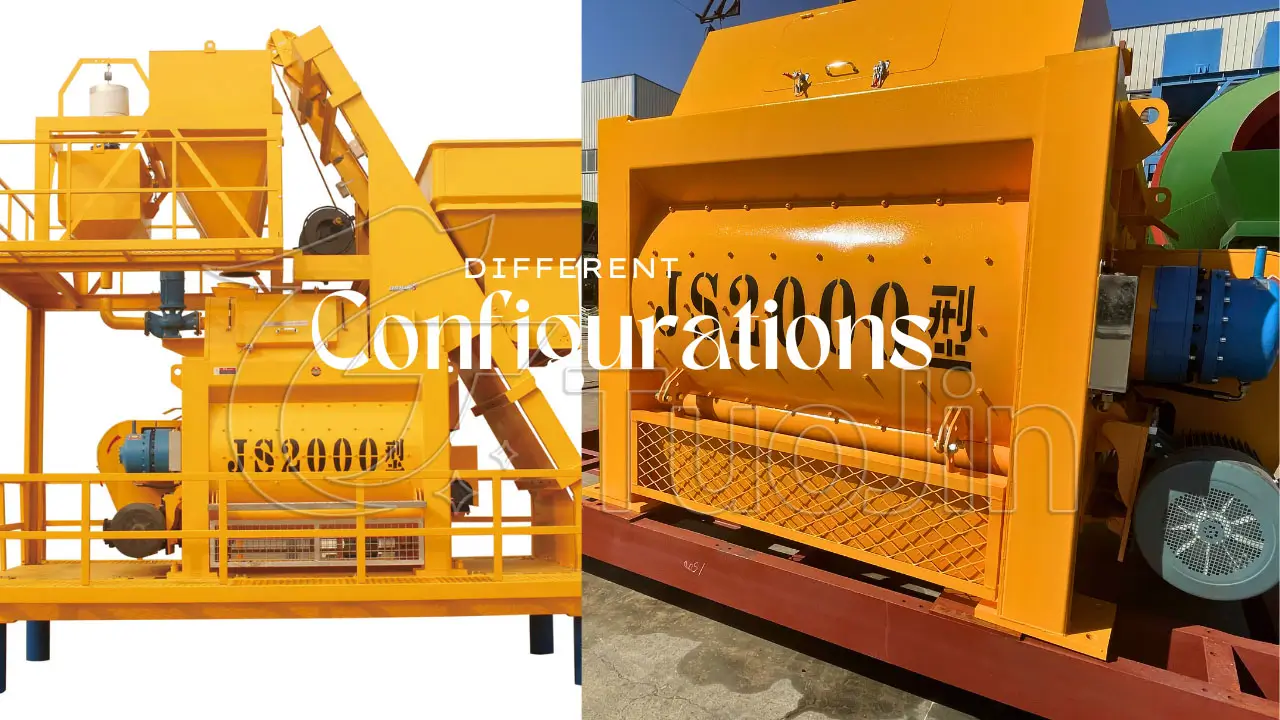

Optional Configurations: Each JS2000 mixer is customized to meet the specific needs of the customer. Configurations may vary for every unit!
Service
At TuoJin Machinery, we are committed to providing exceptional service to our international clients. Our services include:
Pre-Sales Consultation: Expert advice to help you choose the right equipment for your needs.
Customization: Tailored solutions to meet specific project requirements.
Installation and Training: On-site installation and operator training to ensure optimal performance.
After-Sales Support: Comprehensive warranty and technical support to keep your equipment running smoothly.
Spare Parts Supply: Genuine spare parts readily available to minimize downtime.
FAQ
1. What scale of projects is the JS2000 concrete mixer suitable for?
It is ideal for large-scale batching plant setups, precast production lines, and major bridge or water conservancy construction projects.
2. Can the mixer be customized?
Yes, customization is available. Options include voltage (e.g., 380V/415V), control mode (manual/fully automatic), discharge gate height, extended support frames, and more.
3. Is the operation complicated?
Not at all. The mixer is equipped with an automated control system that supports one-click start, automatic batching, and automatic mixing, making it easy to operate.
4. What is the warranty period?
We offer a 12-month warranty for the whole machine, along with lifetime technical support. Operation manuals and technical documents are provided in both Chinese and English.
5. Is the mixer available for export?
Yes, it can be exported to many countries worldwide. The product meets CE, ISO, and other international certification standards.
6. What are the advantages of Chinese concrete mixer manufacturers?
Chinese manufacturers offer strong technical capabilities, cost-effective pricing, fast delivery, and responsive after-sales service, making their products highly competitive in the global market.
7. How can I contact China concrete mixer manufacturer?
You can reach out via the official website, WhatsApp, email, or various social media platforms to get detailed product information and a customized quotation.
