Product Description
HZS90 concrete batching plant is an efficient and stable large-scale concrete production equipment, suitable for medium and large construction projects such as buildings, roads, bridges, water conservancy, and power stations. Its rated production capacity is 90 cubic meters per hour, equipped with a twin-shaft compulsory mixer, an automatic weighing system, and a high-precision control system, enabling efficient, stable, and continuous concrete production.
How does a concrete batching plant work?
1. The batching system automatically weighs the raw materials (sand, gravel, cement, fly ash, etc.) according to the preset formula.
2. The conveying system sends the weighed materials into the mixing machine in sequence.
3. The mixing system starts the twin-shaft mixer to quickly and efficiently mix the raw materials evenly.
4. The discharge system unloads the mixed concrete into a mixer truck or pumping equipment.
5. The entire process is intelligently controlled by the electrical control system, ensuring precise batching and automated workflow.

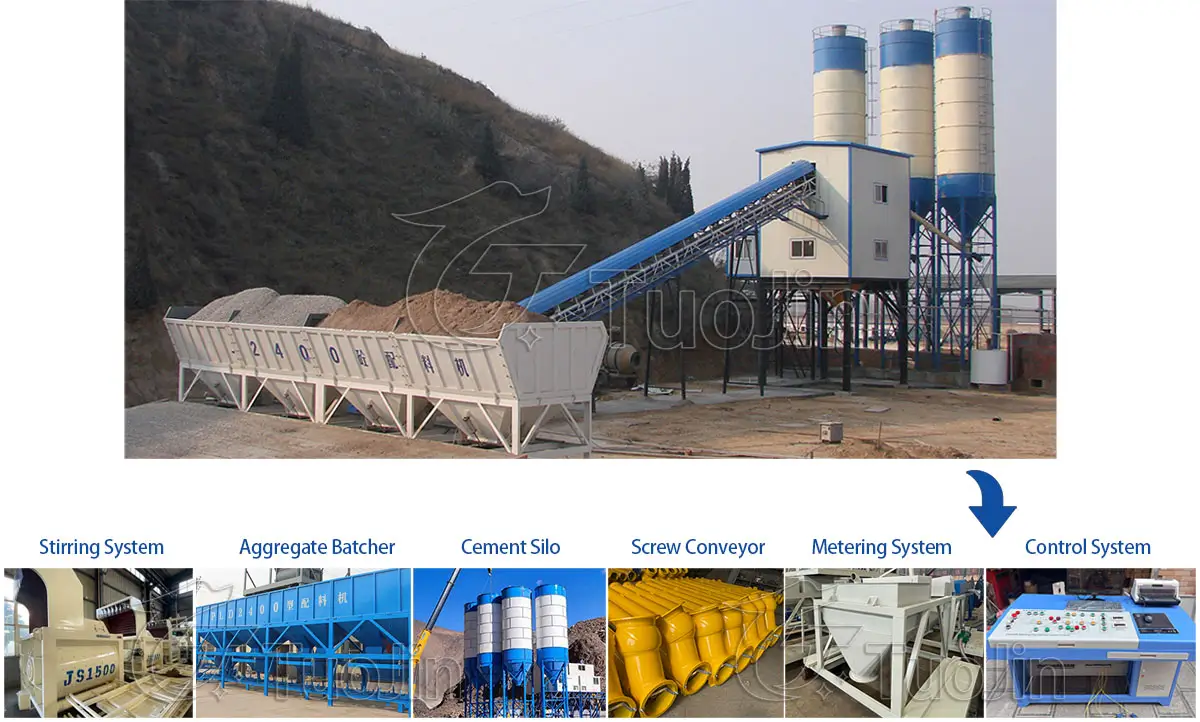

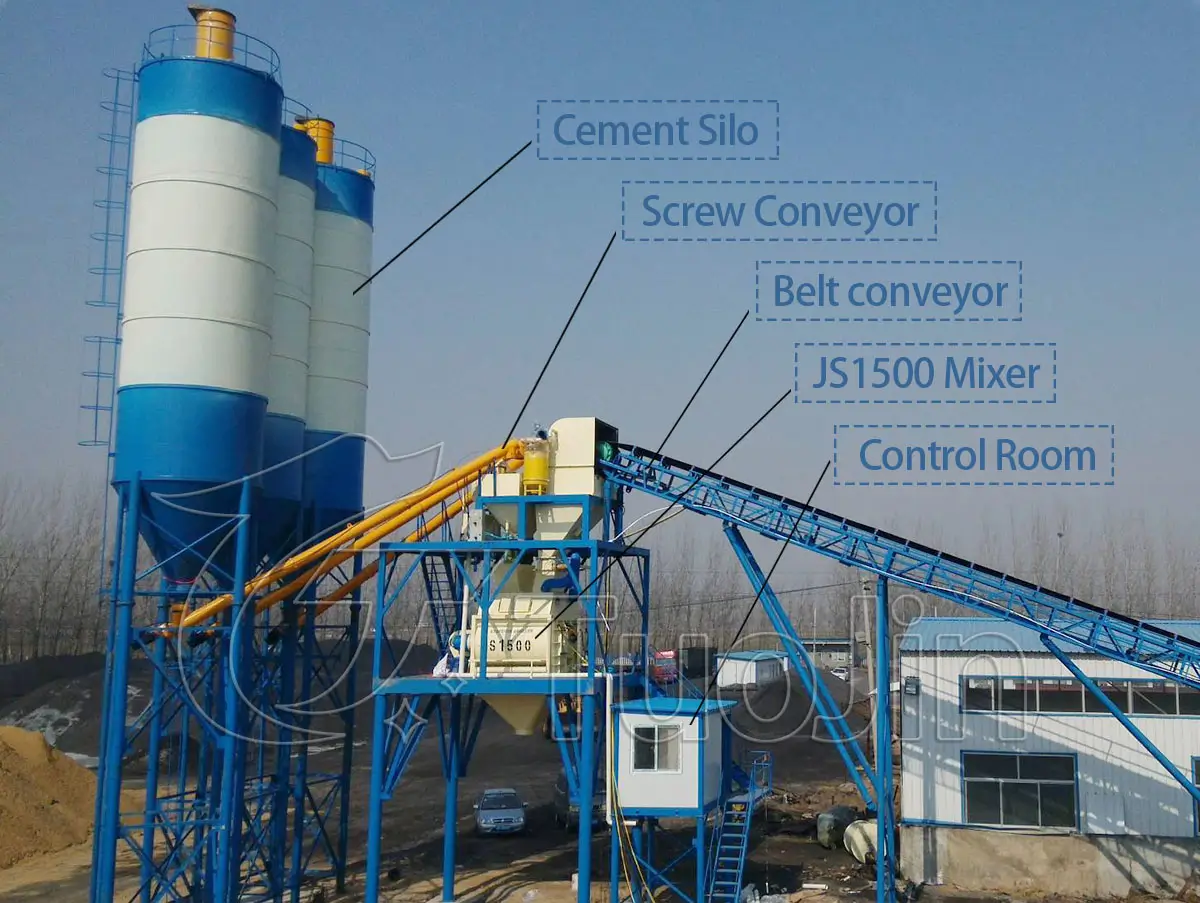

Parts of HZS90 Concrete Batching Plant
Mixing Machine: JS1500 Twin-shaft Compulsory Mixer
Batching System: PLD2400 Four-bin Automatic Batching Plant
Conveying System: Belt Conveyor, Cement Spiral Conveyor
Weighing System: Independent weighing for cement, water, additives, and powders
Storage System: Cement Silos, Sand and Gravel Storage Bins
Control System: Fully Automatic PLC Control System, with optional dual control via touch screen and computer
Dust and Environmental Protection System: Pulse Dust Collector, Spraying Dust Suppression System (optional)
Advantages & Features
High Production Efficiency: The theoretical production rate reaches 90m³/h. The performance of the mixer and batching plant equipment is superior, allowing for quick completion of concrete mixing and batching tasks.
Accurate Measurement: Equipped with a high-precision measurement system, ensuring high accuracy in material weighing and stable concrete quality.
Good Mixing Effect: The design of the mixing blades in the JS1500 twin-shaft compulsory mixer ensures even mixing and excellent workability of the concrete.
Excellent Environmental Performance: The powder delivery and mixing processes are carried out in a closed system. It is equipped with a pulse dust collector or other dust removal devices to effectively reduce dust emissions and minimize environmental pollution.
Easy Operation: The fully automatic control system with an intuitive interface makes operation and monitoring easy for the operators. It also supports report printing and management functions.
Simple Maintenance: The modular structure design facilitates installation, disassembly, and maintenance of the equipment. Easily replaceable wear parts reduce maintenance costs and downtime.
Technical Specifications
| Model | HZS25 | HZS35 | HZS50 | HZS75 | HZS60 | HZS90 | HZS120 | HZS180 | |
|---|---|---|---|---|---|---|---|---|---|
| Theoretical productivity | 25m³/h | 35m³/h | 50m³/h | 75m³/h | 60m³/h | 90m³/h | 120m³/h | 180m³/h | |
| Mixer model | JS500 | JS750 | JS1000 | JS1500 | JS1000 | JS1500 | JS2000 | JS3000 | |
| Mixer capacity | 0.5m³ | 0.75m³ | 1m³ | 1.5m³ | 1m³ | 1.5m³ | 2m³ | 3m³ | |
| Batching machine model | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |
| Max.size of aggregate | ≤40/50mm | ≤40/50mm | ≤60/80mm | ≤60/80mm | ≤60/80mm | ≤60/80mm | ≤60/80mm | ≤60/80mm | |
| Discharging height | 1500-3800mm | 1500-3800mm | 3800mm | 4100mm | 4100mm | 4100mm | 4100mm | 4100mm | |
| Aggregate metering range and accuracy | 0-1500kg±2% | 0-2000kg±2% | 0-2000kg±2% | 0-3000kg±2% | 0-2000kg±2% | 0-3000kg±2% | 0-3000kg±2% | 0-4000kg±2% | |
| Cement metering range and accuracy | 0-300kg±1% | 0-500kg±1% | 0-800kg±1% | 0-900kg±1% | 0-800kg±1% | 0-900kg±1% | 0-1200kg±1% | 0-1800kg±1% | |
| Water metering range and accuracy | 0-200kg±1% | 0-300kg±1% | 0-300kg±1% | 0-400kg±1% | 0-300kg±1% | 0-500kg±1% | 0-500kg±1% | 0-800kg±1% | |
| Additive metering range and accuracy | 0-50kg±1% | 0-50kg±1% | 0-50kg±1% | 0-50kg±1% | 0-50kg±1% | 0-50kg±1% | 0-80kg±1% | 0-100kg±1% | |
| Total Power | 50.25kw | 64.4kw | 78.7kw | 101kw | 105kw | 145kw | 210kw | 260kw | |
| Power | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase | |
| Dimension(mm) | 11600✖13000✖17200 | 12900✖13000✖17200 | 18000✖10500✖17200 | 31500✖13000✖17200 | 28400✖10500✖18700 | 58500✖12300✖18700 | 60100✖13700✖18700 | 43500✖24000✖18700 | |
Applications
Ready-Mix Concrete Production: Provides ready-mix concrete for various construction projects in urban areas, meeting the needs of different construction sites.
Road and Bridge Projects: Used for concrete production in highways, urban roads, and bridges, providing high-quality concrete for construction.
Hydropower and Water Conservancy Projects: Produces large quantities of concrete that meet the requirements for dam, canal, and other hydropower and water conservancy projects.
Airport Construction: Provides high-strength, high-performance concrete for the construction of airport runways, aprons, and other facilities.
Precast Component Production: Can be used in precast concrete plants to produce various precast panels, beams, and other components.

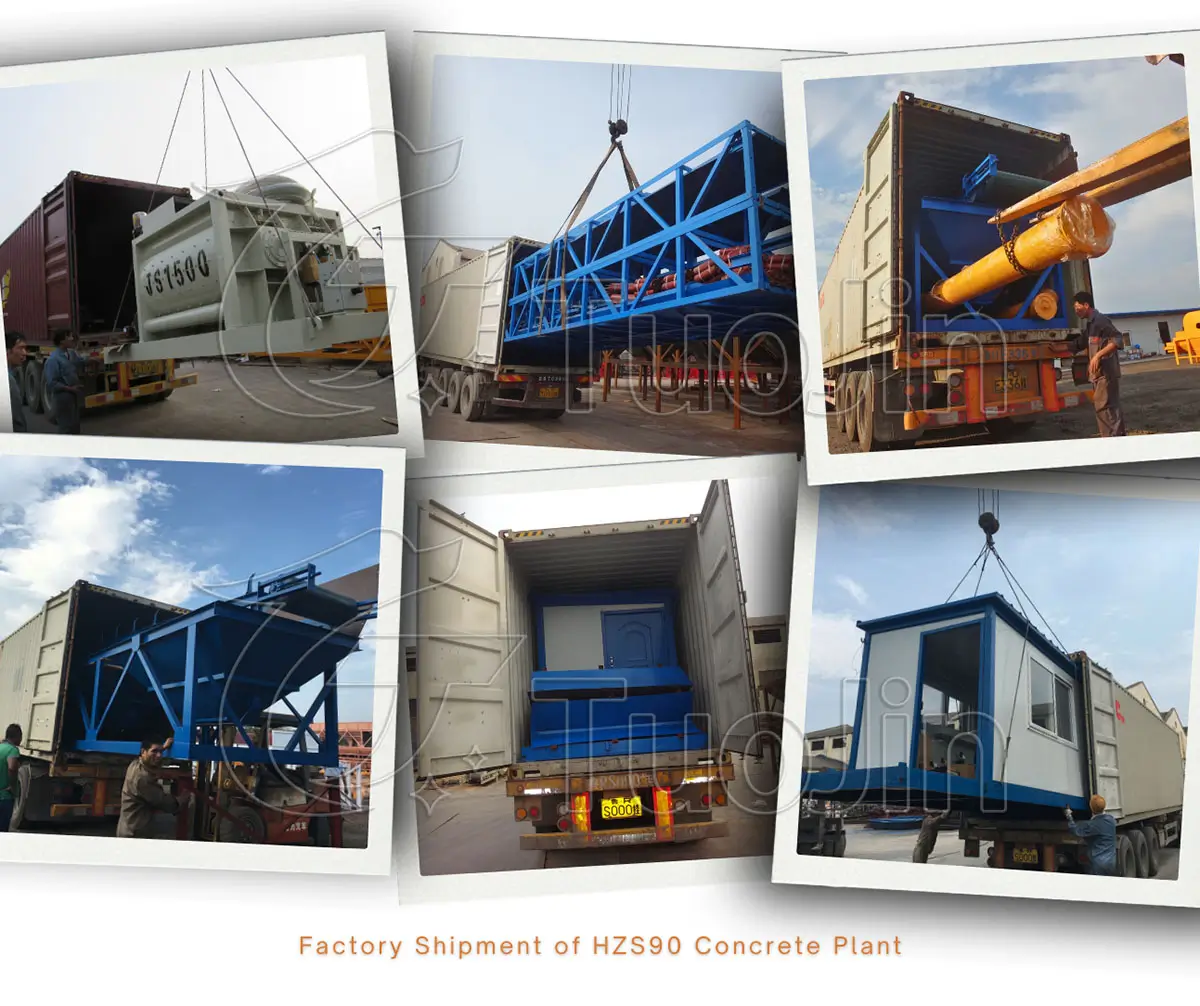

Factory delivery of HZS90 Concrete Plant
Production Lead Time: Typically 7–15 working days, depending on the specific order requirements.
Packaging Method: Standard export packaging with reinforced protection for key components.
Factory Testing: All equipment undergoes rigorous debugging and testing to ensure reliable performance.
Supporting Documents: Detailed equipment manuals, operation and maintenance guides, and spare parts lists are provided to the customer.
Transportation: By land or sea, with packing lists and container loading diagrams supplied.
Delivery Options: Offers both complete machine delivery and component shipment, with support for on-site assembly by the customer.
Optional Configurations: Each HZS90 batching plant is customized to meet the customer's specific needs. Variations in configuration mean every HZS90 plant is unique!
Service
Technical Support: Installation, commissioning, and operation training are provided.
Warranty: 12-month warranty for the main machine, excluding wear parts.
Spare Parts Supply: Genuine spare parts are kept in stock for quick response to customer needs.
Remote Support: Online troubleshooting and remote control services help customers resolve issues promptly.
Installation & Commissioning: Remote technical support is available, or experienced engineers can be dispatched on-site as needed.
FAQ
1. How to purchase the HZS90 concrete batching plant?
We provide a one-stop procurement service. You can leave a message on our website, contact us by phone, or send an inquiry via email. We will offer customized solutions and quotations based on your specific requirements.
2. How to choose the right concrete batching plant?
Buy concrete batching plant, you should consider factors such as project size, required concrete output, budget, and construction environment. For example, China concrete batching plant 90m³/h is an ideal choice for medium to large-scale projects.
3. Is the quality of the HZS90 batching plant made in China reliable?
Yes, our HZS90 batching plant is made with high-quality steel and key components, complies with international standards, and is ISO certified to ensure stability and long service life.
4. Why is this considered a high quality concrete batching plant?
It uses a JS1500 twin-shaft compulsory mixer for more uniform mixing.
Equipped with PLC intelligent control, ensuring accurate batching with an error margin of ≤±1%.
Modular design allows for quick installation and easy maintenance.
Eco-friendly configuration includes a pulse dust collector to reduce dust pollution.
5. Why is hot sale concrete batching plant?
The HZS90 is popular both domestically and internationally due to its high cost-performance ratio, stable output capacity, and low failure rate. It is widely used in commercial concrete plants and infrastructure projects.
6. Do you offer affordable equipment?
Absolutely. We provide cost-effective equipment solutions based on customer needs. Even for those seeking economical configurations, we can offer cheap concrete batching plant options that ensure quality while reducing costs—perfect for budget-conscious projects.
