Product Description
JS3000 concrete mixer is a twin-shaft compulsory concrete mixing machine, widely used in large-scale construction projects such as buildings, highways, bridges, water conservancy works, precast component factories, and commercial concrete production lines. With a discharge capacity of 3 cubic meters (3000 liters) per batch, it can operate independently as a main mixer or be combined with PLD series batching machines to form a large concrete batching plant.
Working Principle
The JS3000 concrete mixer adopts a twin horizontal shaft layout. The two mixing shafts are driven by synchronized gears, rotating multiple spiral blades to perform shearing, squeezing, and overturning actions on the materials inside the mixing drum. Scraper blades are installed inside the drum to effectively prevent material adhesion and accumulation, ensuring uniform mixing and complete discharge.
JS3000 Mixer Performance
The JS3000 concrete mixer is a high-efficiency, durable, large-scale forced mixing equipment capable of producing 3.5–4.5 tons of concrete per batch, making it suitable for high-strength engineering applications. Featuring a twin horizontal shaft design and powered by two 55kW motors, it ensures fast and uniform mixing. The mixer can handle various types of concrete, including dry-hard and high-viscosity mixes, with aggregate sizes up to ≤80mm. A hydraulic discharge system enables rapid unloading, with a discharge height of ≥3.8 meters to facilitate compatible transportation. Optional automation and environmental modules are available to meet the stringent demands of large batching plants and infrastructure projects.
Advantages & Features
High-Efficiency Mixing: Utilizes a twin horizontal shaft mixing structure for fast mixing speed and high uniformity, adaptable to dry-hard, plastic, and various concrete mix ratios.
Wear-Resistant Materials: Mixing blades and liners are made of wear-resistant alloy, offering long service life and low maintenance costs.
Shaft End Sealing Technology: Equipped with a multi-layer sealing structure that effectively prevents slurry leakage and extends bearing lifespan.
Intelligent Control System: Supports PLC and touchscreen control for automated weighing and discharging, enhancing operational convenience and stability.
Easy Maintenance: Features maintenance observation windows and a lubrication system, making daily inspection and servicing more convenient.
Eco-Friendly and Energy-Saving: Enclosed design reduces dust and noise (≤75dB), with optional dust removal equipment available.
Technical Specifications
| Model | HZS25 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |
|---|---|---|---|---|---|---|---|
| Discharging capacity | 500L | 750L | 1000L | 1500L | 2000L | 3000L | |
| Charging capacity | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | |
| Productivity | 25m³/h | 35m³/h | 50-60m³/h | 75-90m³/h | 120m³/h | 150m³/h | |
| Max.size of aggregate(aggregate/pebble) | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 60-80mm | 100-120mm | |
| Blade | Rotate speed | 35r/min | 31r/min | 25.5r/min | 25.5r/min | 23r/min | 21r/min |
| Quantity(pcs) | 2x7 | 2x7 | 2x7 | 2x8 | 2x9 | 2x10 | |
| Power of main motor | 18.5kw | 30kw | 37kw | 2x30kw | 2x37kw | 2x55kw | |
| Power of hoisting motor | 5.5kw | 7.5kw | 15kw | 18.5kw | 22kw | / | |
| Power of water pump motor | 1.1kw | 1.5kw | 3kw | 3kw | 4kw | / | |
| Hopper hoisting speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | / | |
| Discharging height | 1.5m-3.8m | 15.m-3.8m | 4m | 4m | 4m | / | |
| Overall Dimension | Transportation | 3050x2300x2680mm | 3650x2600x2890mm | 4640x2250x2250mm | 5058x2440x2700mm | 5860x2735x2735mm | / |
| Working | 4461x3050x5225mm | 4951x3650x6225mm | 8765x3436x9540mm | 9645x3436x9700mm | 10720x3870 x10726mm | / | |
| Total weight | 4000kg | 5500kg | 8700kg | 11130kg | 15000kg | / | |

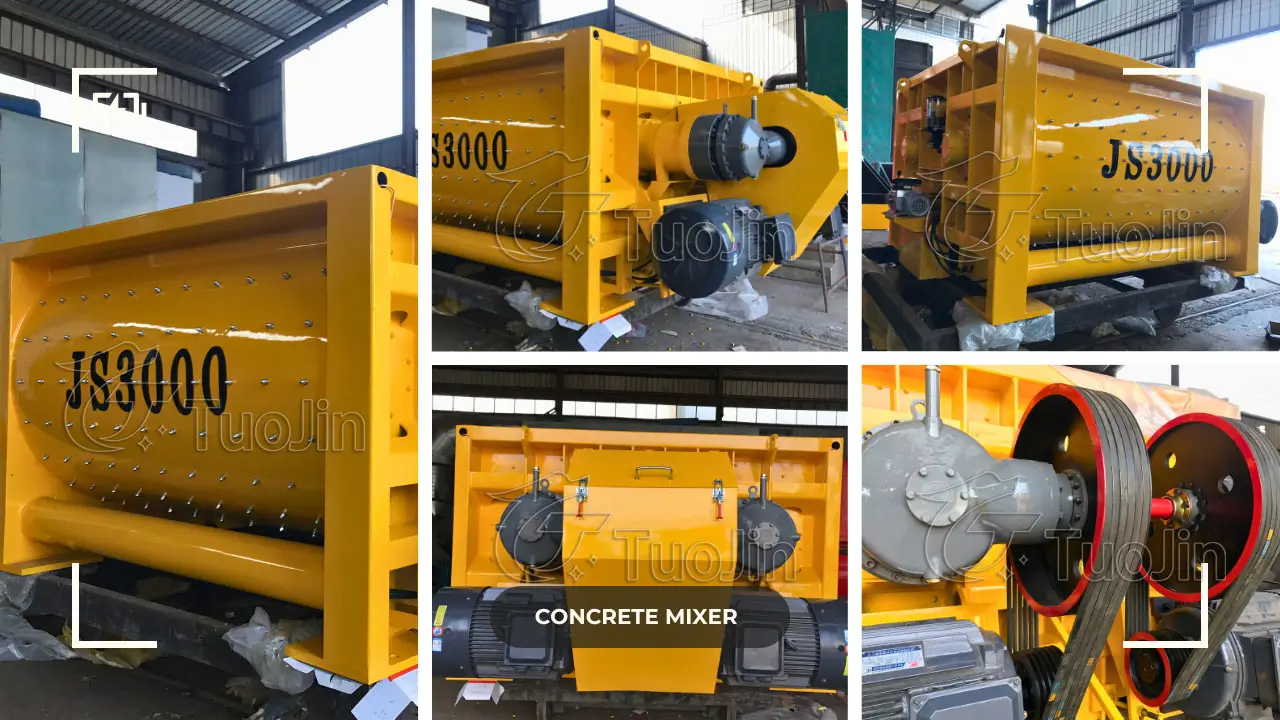

Factory delivery of JS3000 concrete mixer
Delivery Time: Available from stock or made to order;
Packaging Method: Export-standard packaging suitable for sea or land transportation;
Factory Testing: All equipment undergoes strict commissioning and testing to ensure reliable performance;
Supporting Documentation: Detailed equipment manuals, operation and maintenance guides, and spare parts lists are provided to customers;
Optional Configurations: Each JS3000 mixer is customized to meet the specific needs of the customer. Configurations may vary for every unit!
Service
At TuoJin Machinery, we are committed to providing exceptional service to our international clients. Our services include:
Pre-Sales Consultation: Expert advice to help you choose the right equipment for your needs.
Customization: Tailored solutions to meet specific project requirements.
Installation and Training: On-site installation and operator training to ensure optimal performance.
After-Sales Support: Comprehensive warranty and technical support to keep your equipment running smoothly.
Spare Parts Supply: Genuine spare parts readily available to minimize downtime.
FAQ
1. What projects is the JS3000 suitable for?
The JS3000 is ideal for large commercial concrete plants, bridges, high-rise buildings, and water conservancy and hydropower projects where high concrete quality is required.
2. Can it be integrated into an existing batching plant system?
Yes, the JS3000 is compatible with various control systems. It can operate independently or be integrated with batching equipment to form a complete mixing plant.
3. Are spare parts provided?
Yes, we provide a full set of original spare parts and a list of wear parts. Long-term supply and expedited delivery of urgent parts are available.
4. Is there an English operation manual?
Yes, the equipment comes with both Chinese and English operation and maintenance manuals.
5. What is the price of the JS3000 concrete mixer?
The price of the JS3000 concrete mixer varies depending on the configuration (manual/automatic control, optional components, etc.). Please contact us for a customized quote based on your specific requirements.
6. How is overseas installation and commissioning handled?
We offer remote technical support, or, depending on the situation, we can dispatch experienced engineers for on-site installation guidance.
